Double-cylinder big boardmake-up machine machine

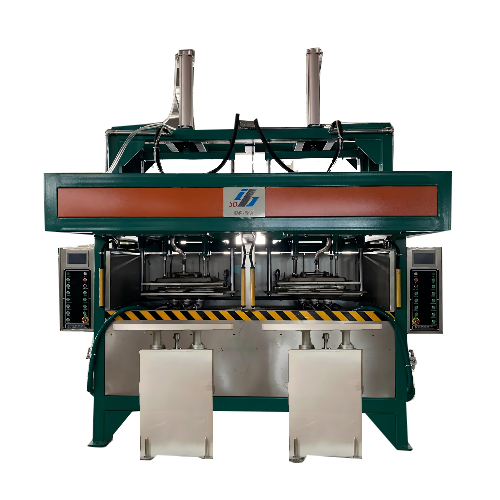

Forming machine with double cylinders and double positions can produce two kinds ofproducts with different shape and thickness at the same time.
The molded products are self-fed by the robotic arm and automatically placed on the drying line or the receiving platform.
Double-cylinder big boardmake-up machine machine
Double-cylinder big boardmake-up machine machine
Double-cylinder big boardmake-up machine machine
Double-cylinder big boardmake-up machine machine
Double-cylinder big boardmake-up machine machine
Double-cylinder big boardmake-up machine machine

Double-cylinder big boardmake-up machine machine

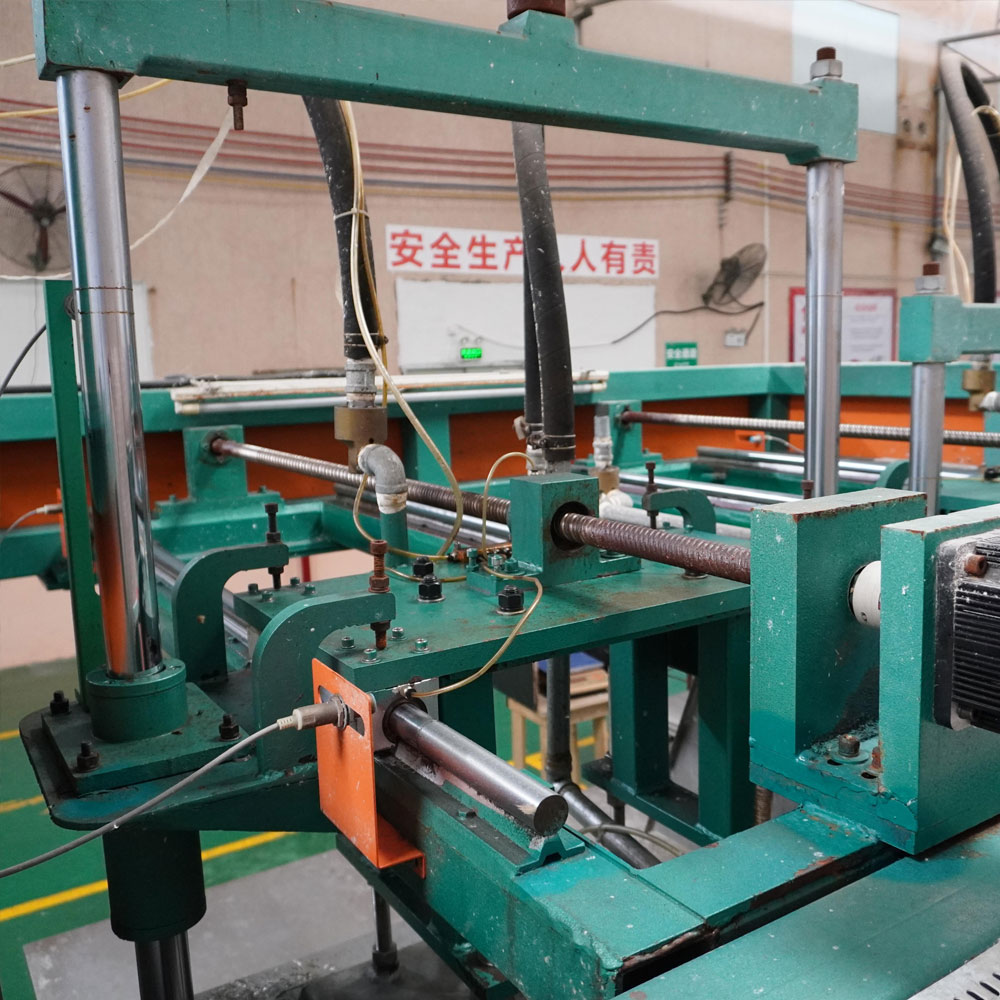

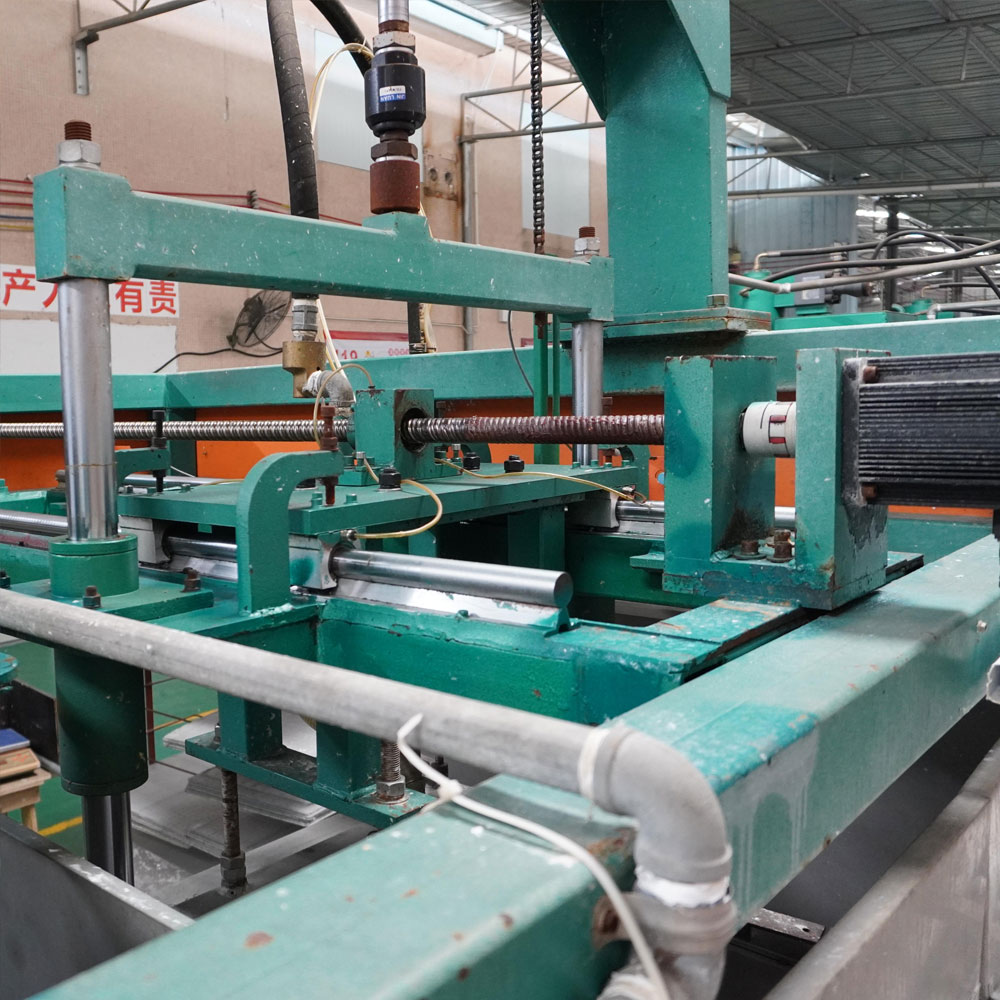

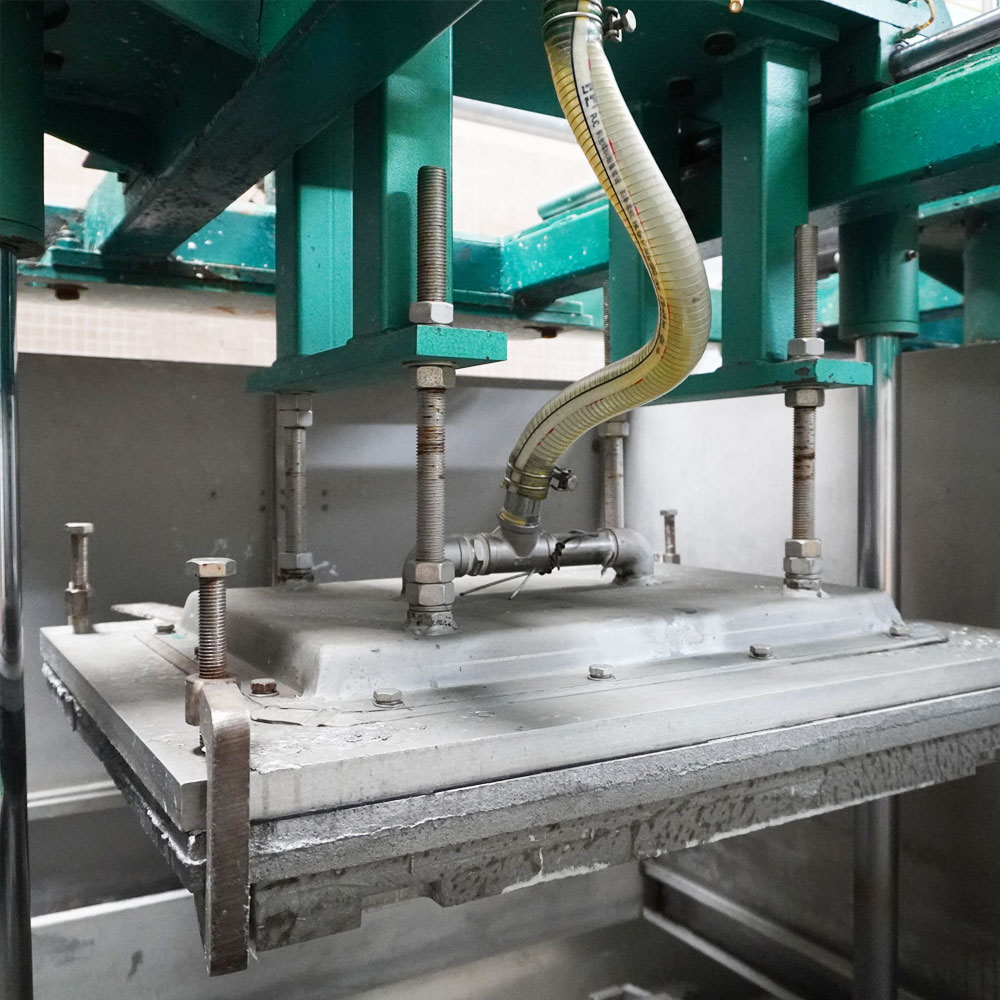

成型机上模传动方式∶丝杆+伺服电机传动+导轨,将产品传动送出到烘干线或接产品平台上,降低工人劳动强度。

Drive mode: screw + servo motor drive + guide rail, the product drive is sent to the dryingline or connected to the product platform, reduce the laborintensity of workers.


优势:性价比高,采用伺服电机往复送料稳定高效,自动接送料从而降低工人劳动强度、安全、简单易操作,独立双杠双工位机型可在一台机器上同时生产两种不同形状和厚度的产品;在提高厂房的利用率的同时提升产能。

Advantages: cost-effective, the use of servo motors reciprocating feed stable and efficient, automatic receiving and feeding to reduce the labor intensity of workers, safe, simple and easy to operate, independent double-bar double-station model can be in a machine at the same time the production of two different shapes and thickness of the product; in order to improve the utilization rate of the plant at the same time to enhance production capacity.

Translated with www.DeepL.com/Translator (free version)


使用工艺:干压、湿压、半干湿压。

Use process: dry pressing, wet pressing, semi-dry and wet pressing.


规格型号

Model

模板尺寸

Mould plate size

真空度Mpa

Vacuum degree Mpa

压缩空气压力 Mpa

Compressed air pressure Mpa

成型循环(S)

Molding cycle(S)

ZY-CX-C800*600mm-0.05-0.070.5-0.73-60
900*700mm-0.05-0.070.5-0.73-60
1100*750mm-0.05-0.070.5-0.73-60

其他特殊规格可按客户要求定制。

Other speical specifications can customized According to client's requirement.


1. Parameters and specifications

1、Standard configuration for dry pressing process

1、Template size: 800*600mm, made of 201 stainless steel;

2, the upper mold transmission mode: silk rod + servo motor drive + guide rail;

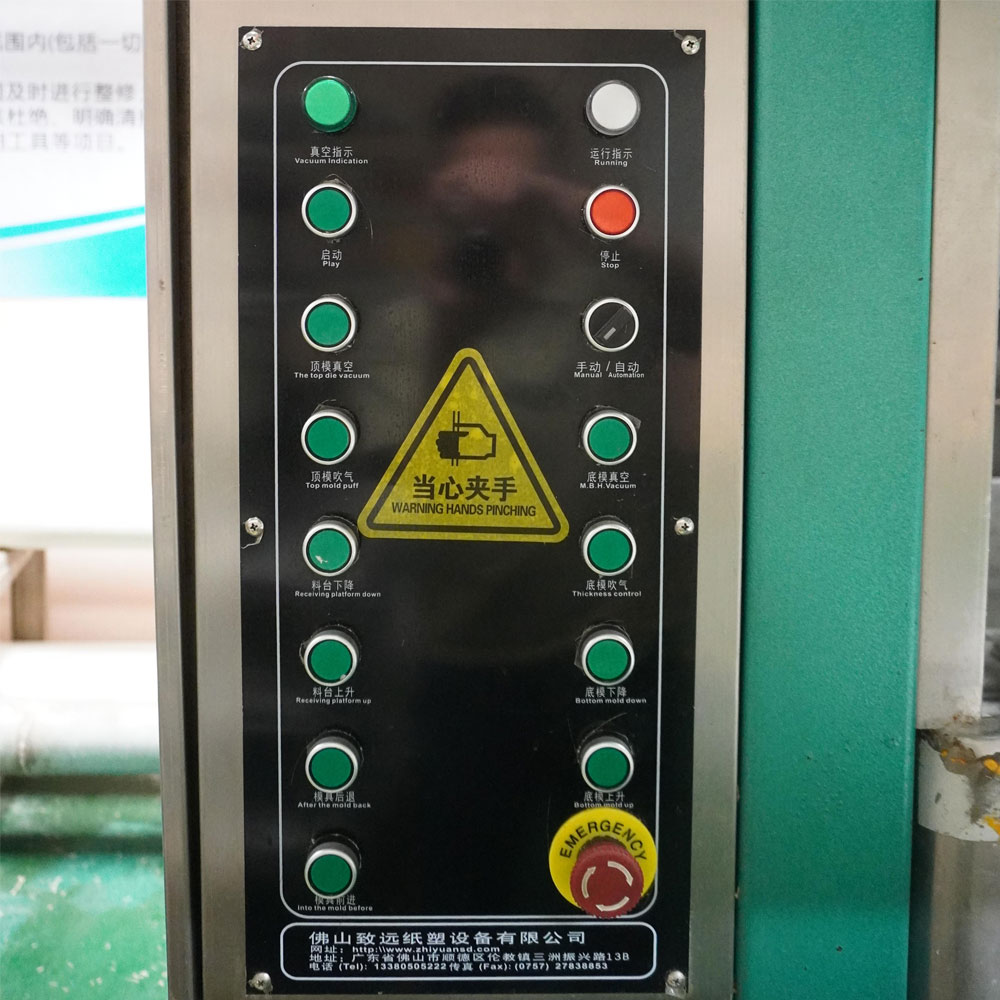

3, Taiwan Yonghong PLC + Shenzhen digital touch screen;

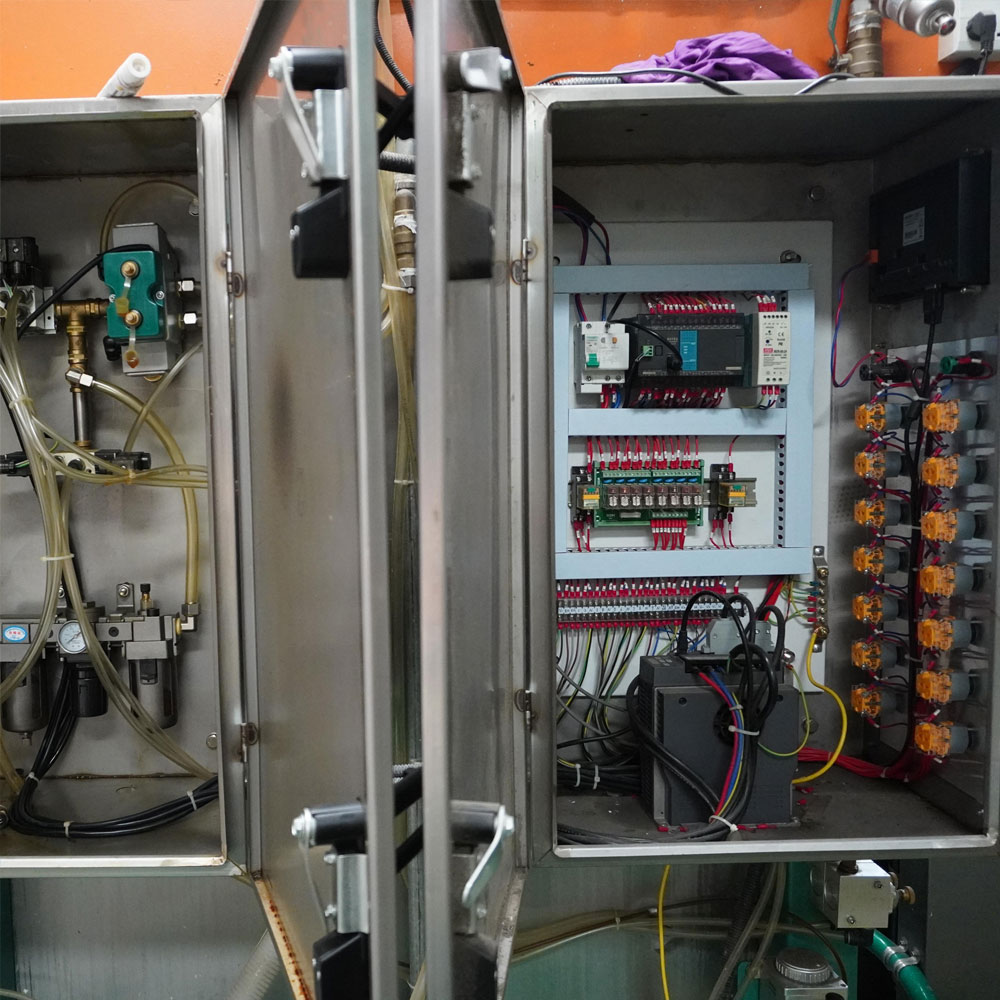

4, pulp barrel body is 304 stainless steel, electric box, gas box material 201 stainless steel;

5, including two receiving products receiving table, receiving table material stainless steel;

6, Zhaoqing Zhicheng main cylinder φ125mm stroke 650mm, receiving cylinder φ63mm stroke 450mm;

7、Omron relay, German encoder;

8, Zhaoqing Fangda, Zhicheng pneumatic components;

9、Automatic mold washing device is not included.



2、Wet pressing process standard configuration

1、Template size: 800*600mm, made of 201 stainless steel;

2, the upper mold drive: screw + servo motor drive + guide rail;

3, Taiwan Yonghong PLC + Shenzhen digital touch screen;

4, pulp barrel body is 304 stainless steel, electric box, gas box material 201 stainless steel;

5, including two receiving products receiving table, receiving table material stainless steel;

6, Zhaoqing Zhicheng main cylinder φ160mm stroke 650mm, receiving cylinder φ63mm stroke 450mm;

7、Omron relay, German encoder;

8, Zhaoqing Fangda, Zhicheng pneumatic components;

9、Including automatic mold washing device.


The above configuration specifications and parameters are standard (i.e., it is a standard machine). Also according to customer requirements, the machine size, template size, electrical box size configuration, PLC controller, touch screen operating system, servo motor brand, screw material, guide rail material, etc. for non-standard customization.
